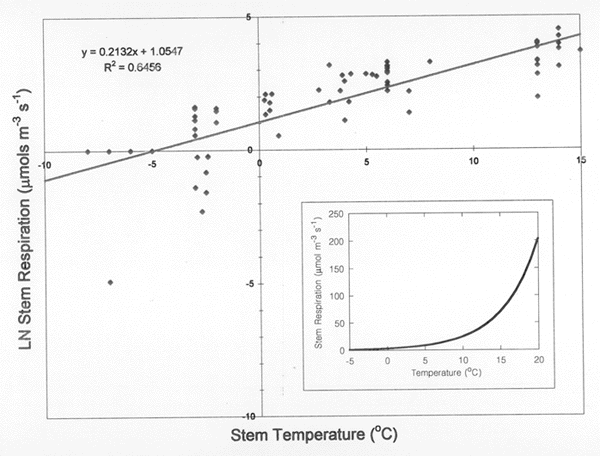

Figure 3: Respiratory temperature response of stems. The respiratory flux is ln-transformed to linearize the following equation:
Where R = respiration rate (µmols m¨² s¨¹), Ro = respiration rate at zero °C, Q10 = proportional change in respiration with a ten degree change in temperature, T = temperature (°C), MSE = mean square error and Io = diel temperature amplitude correction.Inset: Untransformed temperature response of respiration derived from same data.
